The Concealed Hinge Jig makes installing cabinet doors using concealed hinges much easier for onsite work. With the NEW easy-to-use jig, you get drill-press accuracy using a standard drill. The jig ensures accurate hinge alignment, for doors that fit perfectly. Plus, the Concealed Hinge Jig comes with a high-quality carbide-tipped bit with a built-in stop collar. Indexing cams for easier jig positions at the required offset - which is dictated by each hinge. A pair of smaller holes also allow drilling perfectly-positioned holes for the hinge mounting screws, making sure that the hinge will fit accurately every time.

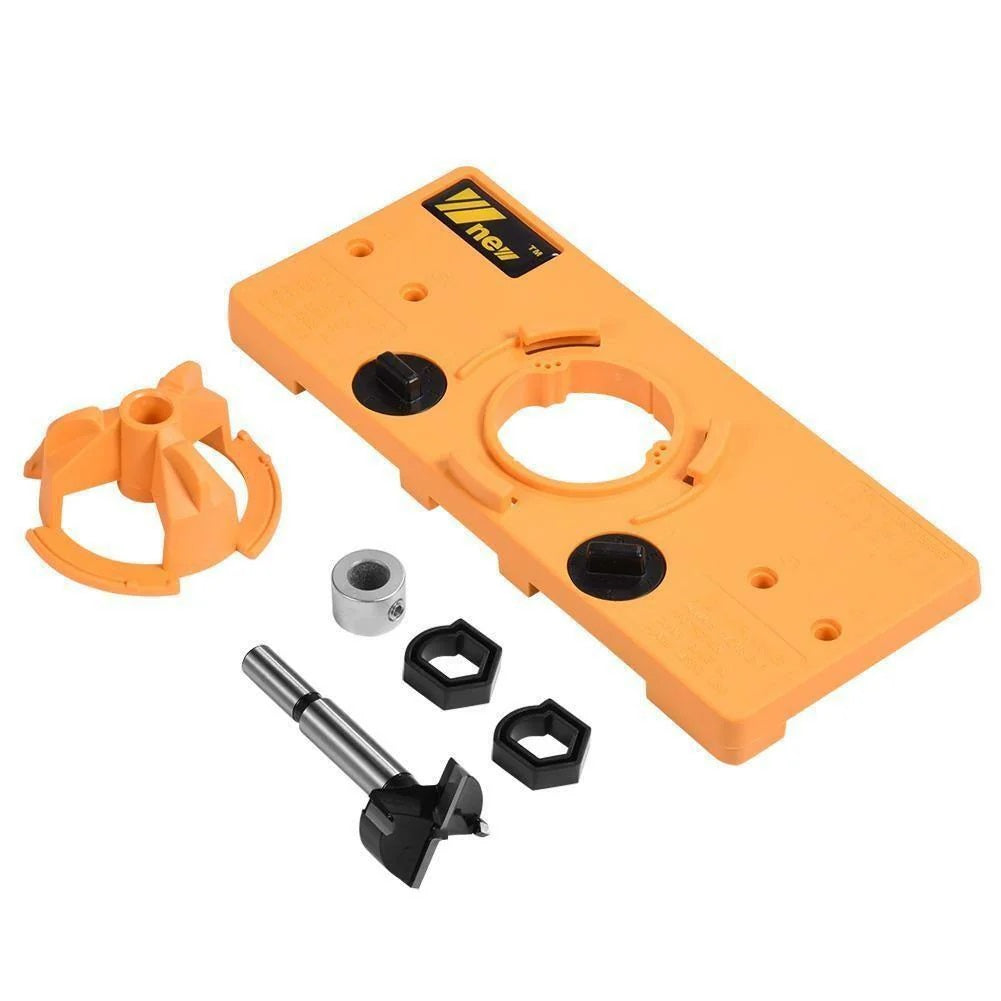

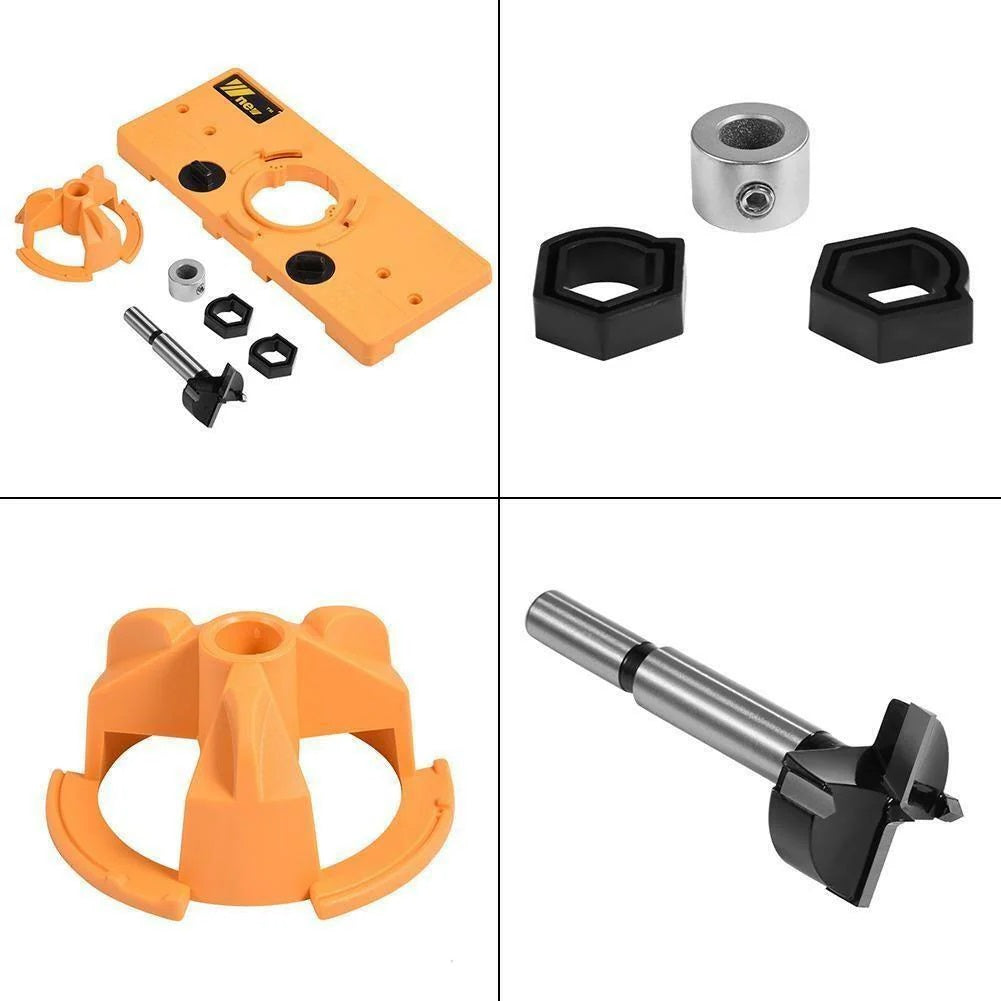

Includes:

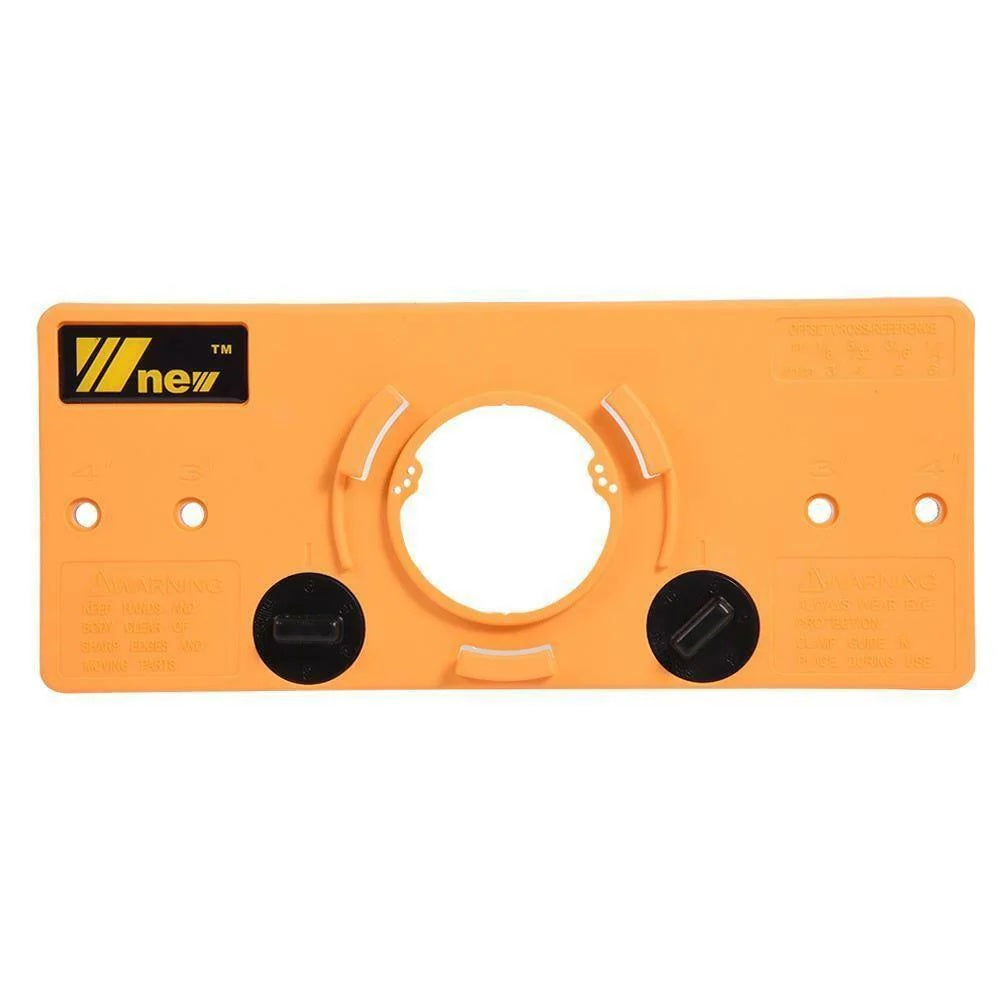

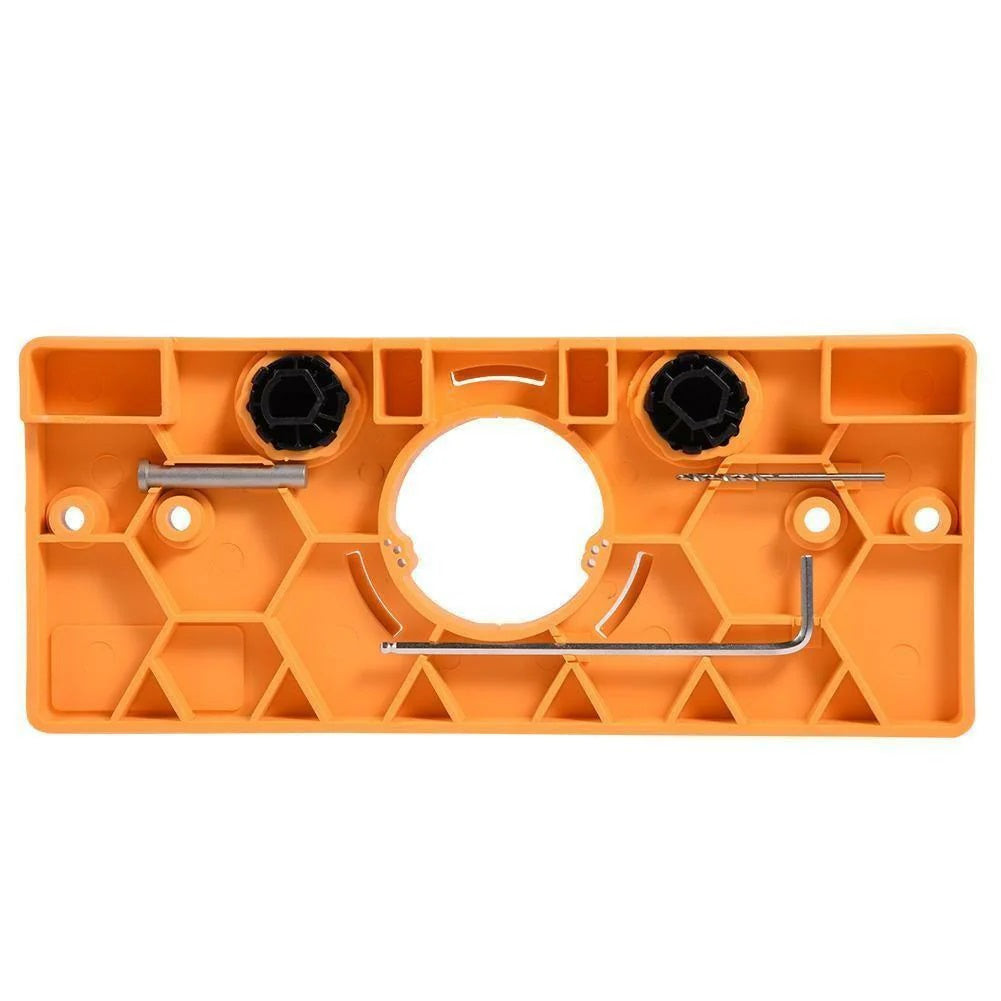

1 x Jig base with index cams

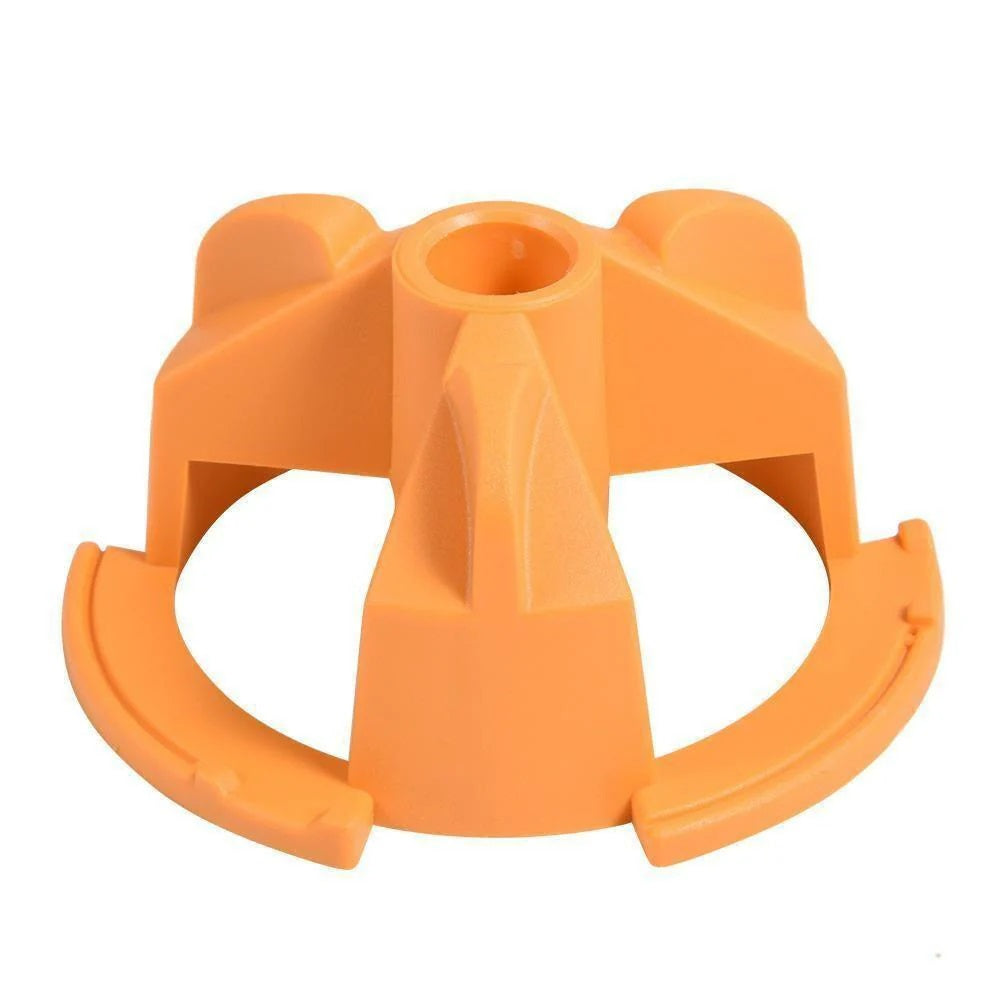

1 x Drill guide

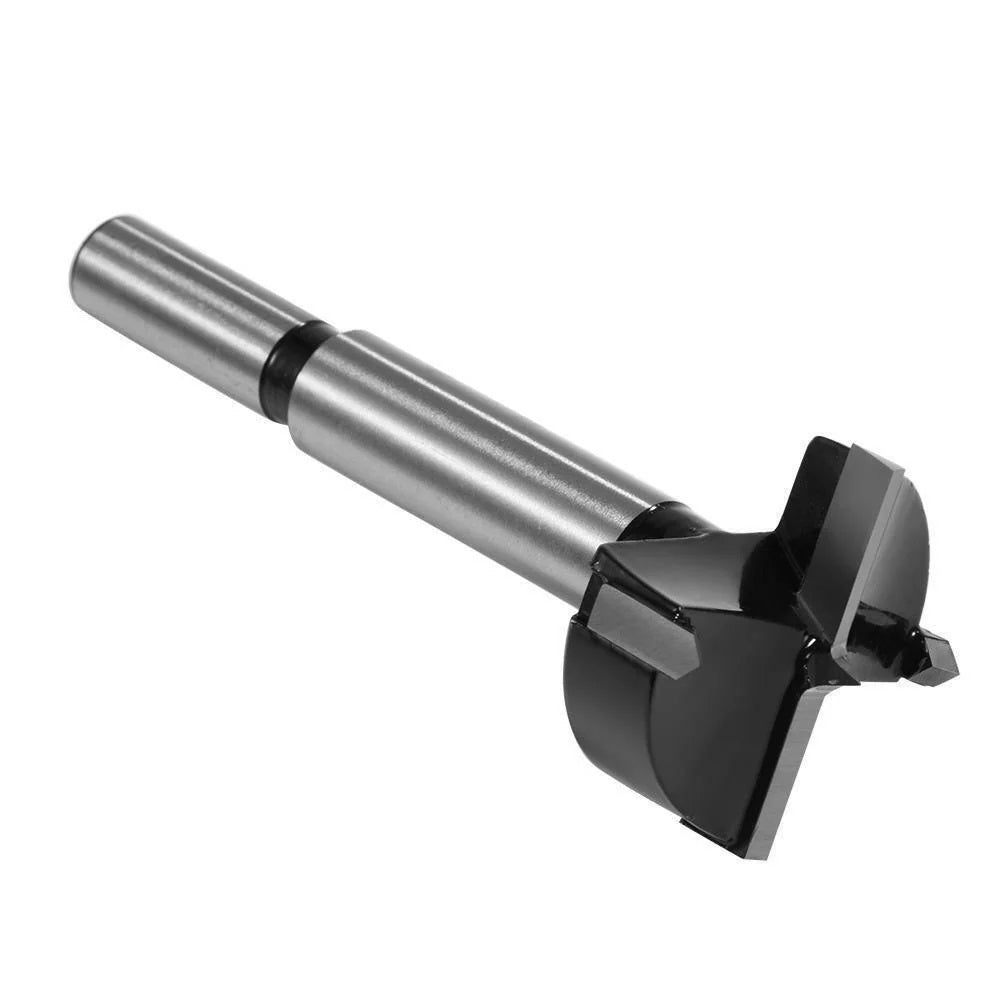

1 x 35mm carbide-tipped drill bit
1 x 3mm pilot drill bit

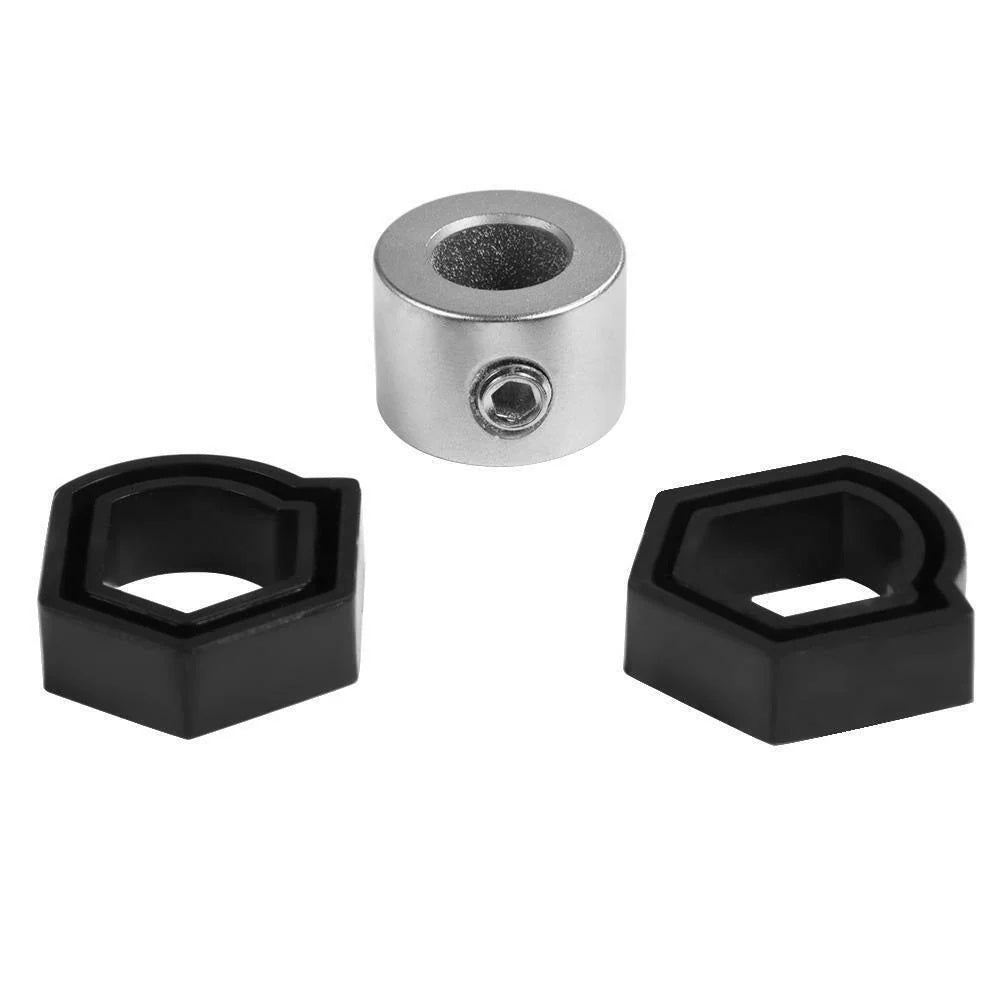

1 x Stop collar with Hex wrench
1 x Owner’s manual
Features:
Accurate hinge positioning with built-in indexing tabs
Repeatable results with built-in measuring scales
Reliable drilling with bit guide and stop collar
Simple to use with any drill—no special tools needed
Adjustable cams ensure proper hinge offset
Durable carbide-tipped drill bit included
Strong, lightweight materials for easy handling
Specifications:
Hinge compatibility: 35mm cup-style concealed hinges
Hinge offset: 3mm, 4mm, 5mm, 6mm
Drill bit, four-cutter carbide tipped with stop collar
Hinge offset from door end: 2'' (50mm) to unlimited
