Hettich - Bi-Fold for Corner Cabinet (52x5.5mm)

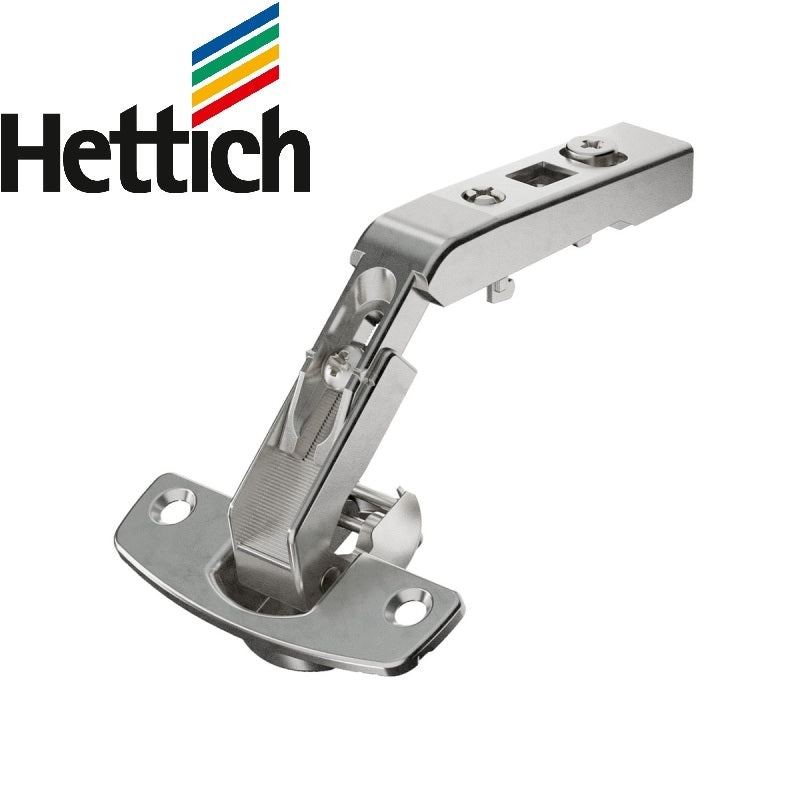

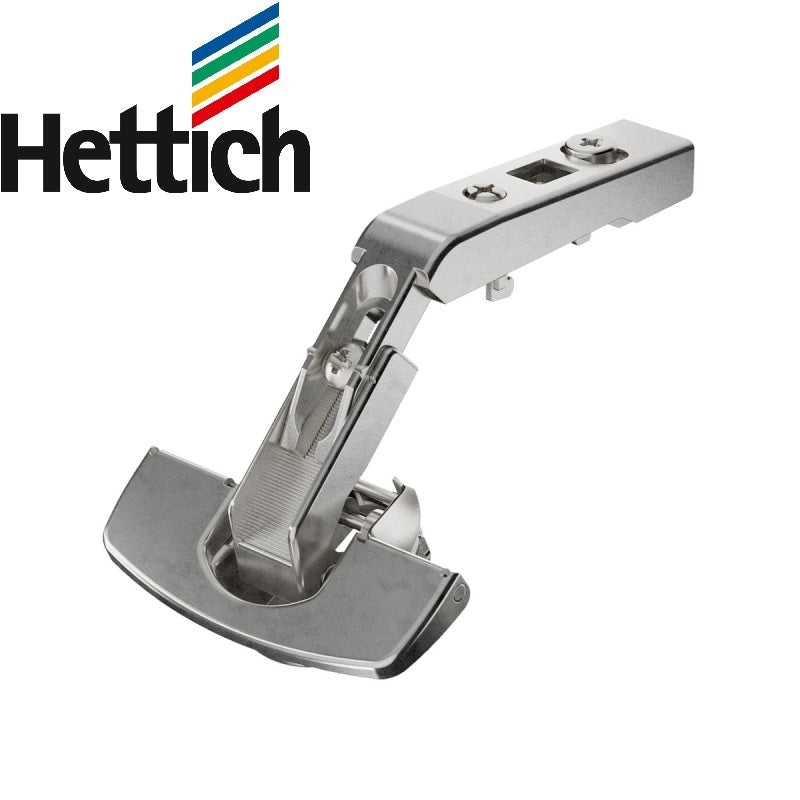

Hinge for corner cabinet folding doors without self closing feature (Intermat 9930), nickel plated, overlay, Opening angle 50° / 65°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)CA 9090109

• Hinge for corner cabinet folding doors
• Without self closing feature (Intermat 9930)
• Quality classification under EN 15570, Level 2
• Opening angle 50° / 65°
• For door thickness 15 - 21 mm
• Door mounting option overlay

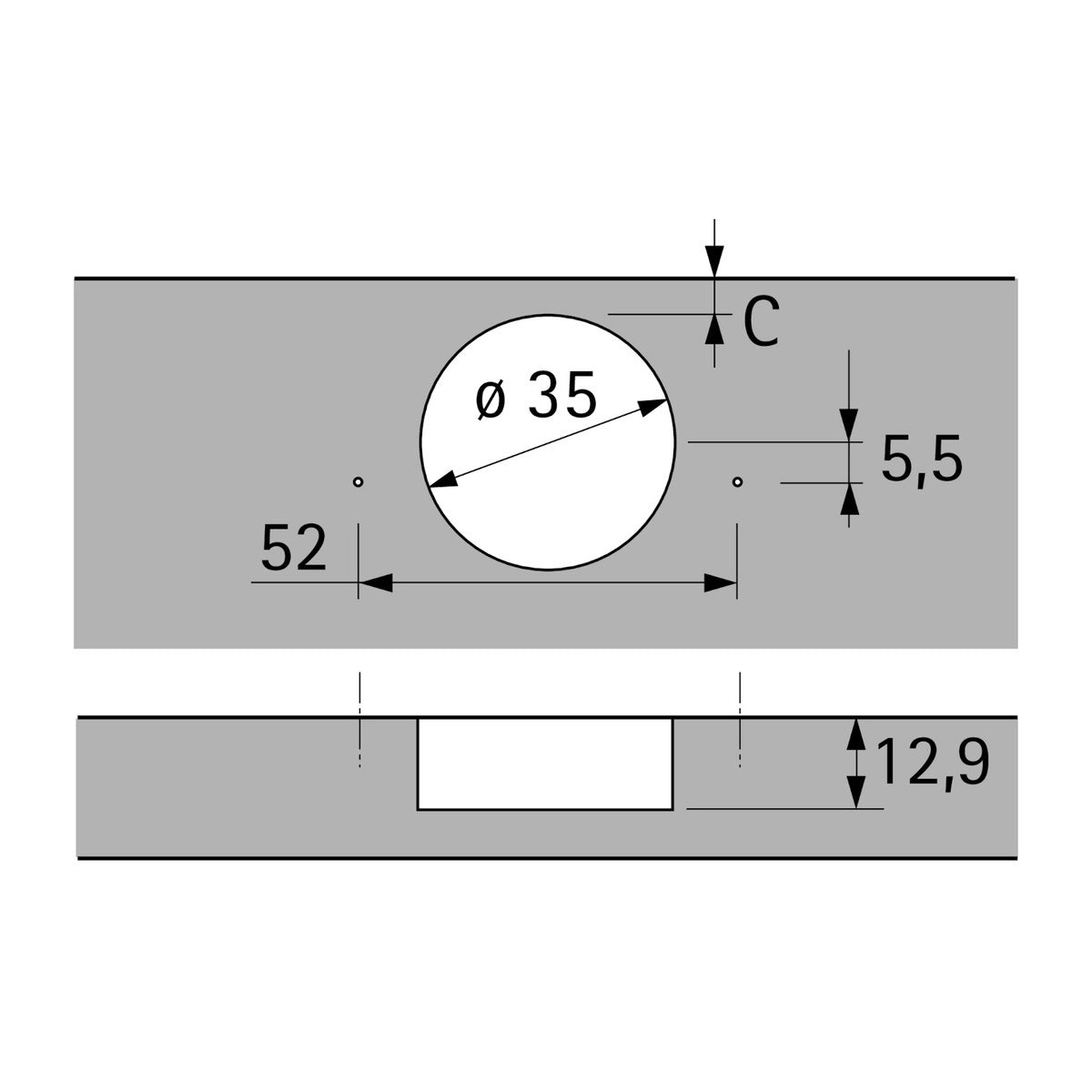

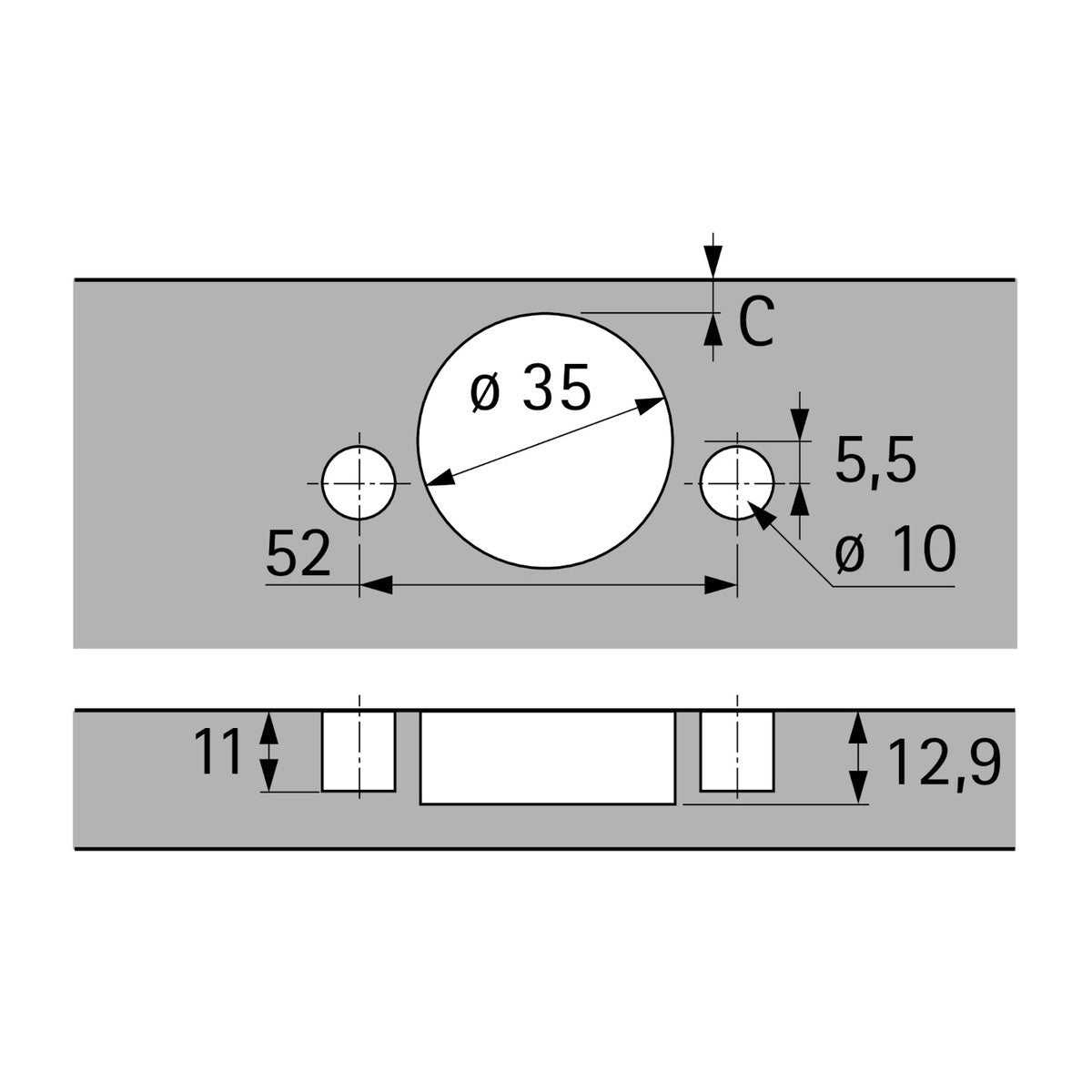

• TH - drilling pattern 52 x 5.5 mm
• Cup depth 12.8 mm
• Integrated diagonal adjustment +9.5 mm / -9.5 mm

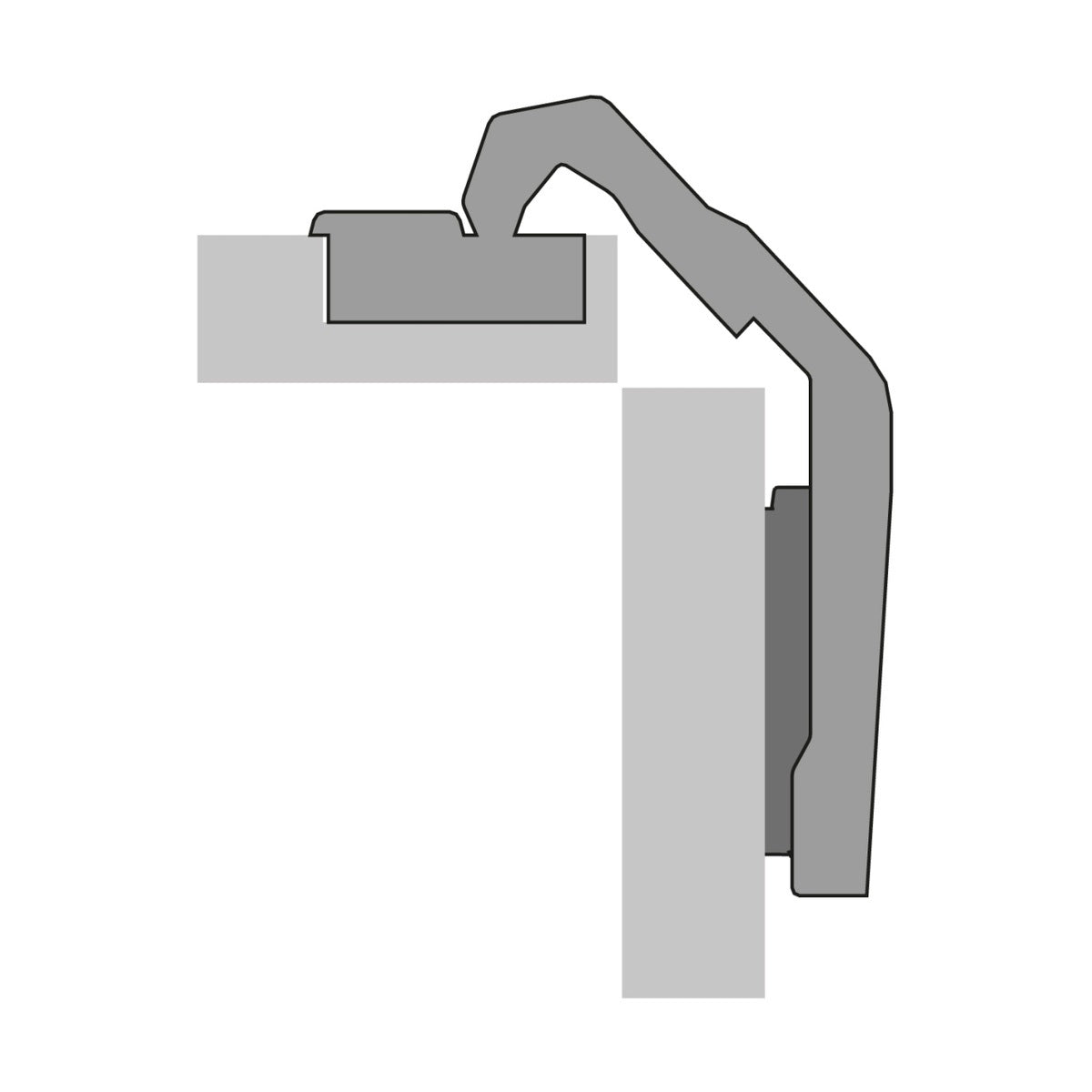

• Integrated overlay adjustment, see sketch
• Integrated depth adjustment, see sketch
• Height adjustment at mounting plate
• steel / die-cast zinc nickel plated
