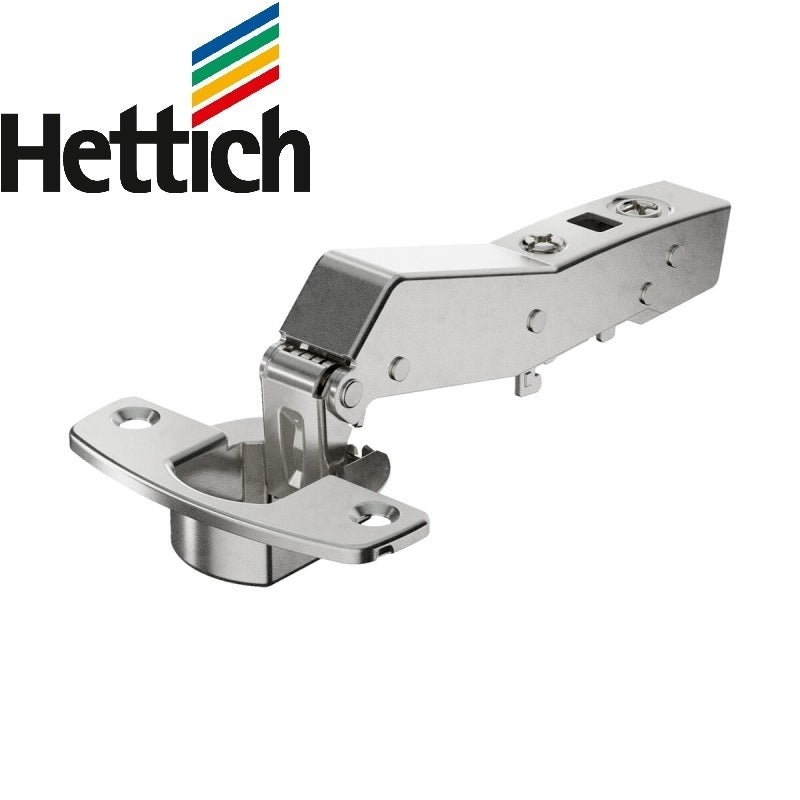

Hettich - 45 Degree FULL OVERLAY Soft Close Hinge (52x5.5mm)

• Sensys angle hinge W45
• With integrated Silent System, with self closing feature (Sensys 8639i W45)
• Quality classification under EN 15570, Level 3
• Opening angle 95°
• For door thickness 15 - 28 mm

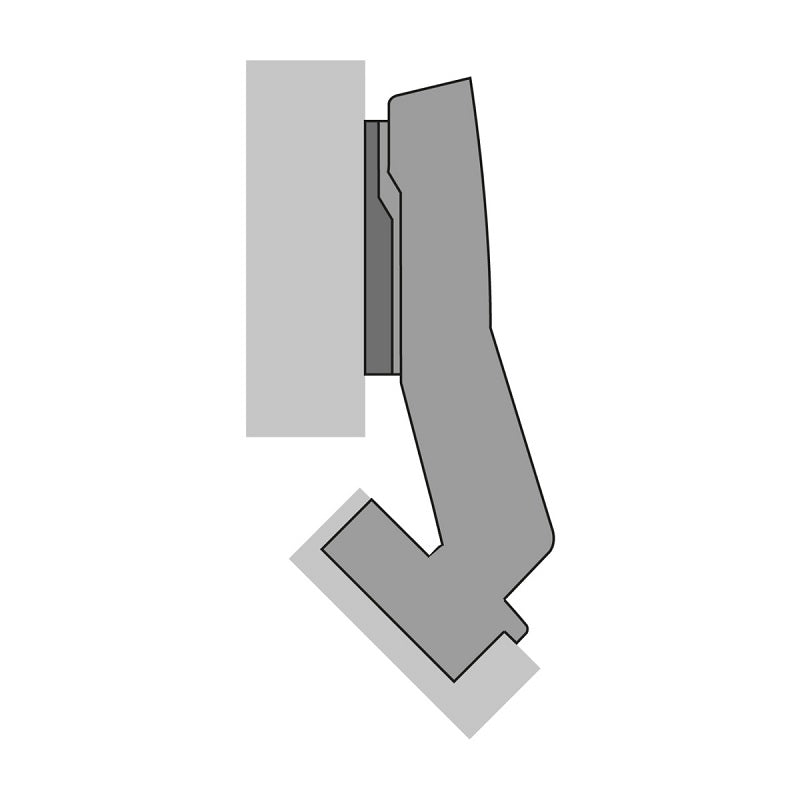

• Door mounting option overlay (B -2 mm)
• TH-drilling pattern 52 x 5.5 mm
• Cup depth 12.8 mm

• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm

• steel nickel plated


(MOUNTING PLATES ARE SOLD SEPARATELY)
