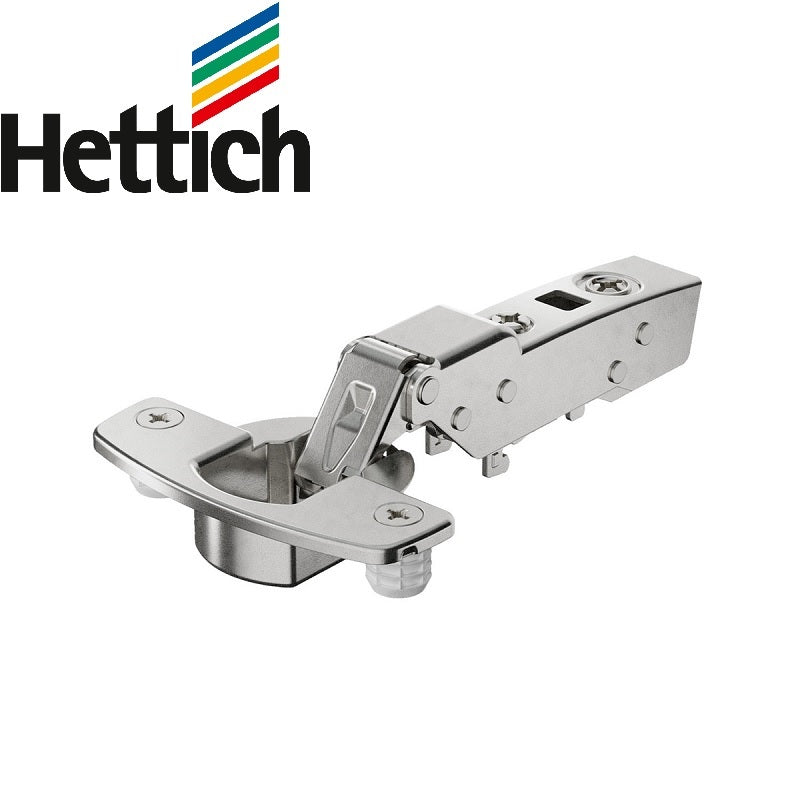

Hettich 110 Degree Half Overlay Soft Close Hinge (52x5.5mm)

Hettich 110 Degree Half Overlay Soft Close Hinge (52x5.5mm)

Regular price $16.94 AUD
Regular price Sale price $16.94 AUD
Sale Sold out
Taxes included. Flat $10 shipping, free over $100

Half overlay hinge for standard cabinet doors: use it when two doors share one side panel. Corner cabinet? Use a Corner Hinge or Corner Bi-Fold Hinge instead.

Check before you buy

1. Standard door or corner cabinet?
This hinge is for standard cabinet doors. For a corner cabinet, choose Hettich 165° Corner Hinge or Corner Bi-Fold Hinge.

2. Half overlay, full overlay or inset?

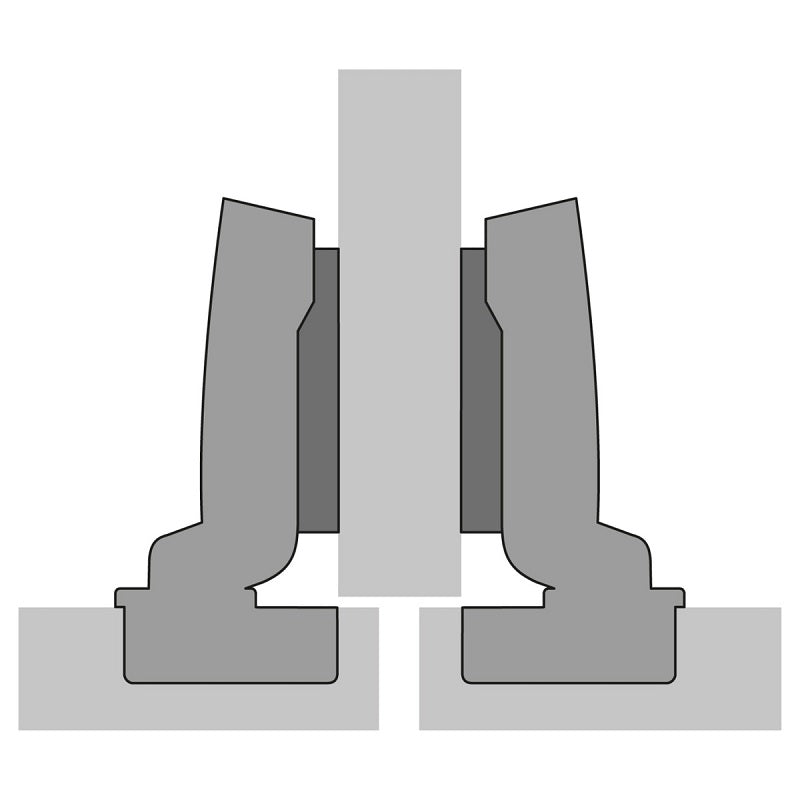

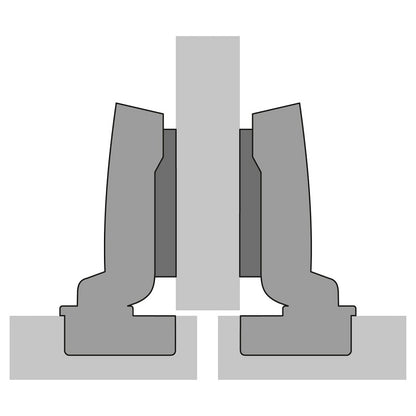

Half overlay: two doors share one side panel. If your door covers the whole side of the cabinet, choose Full Overlay. If your door sits inside the cabinet opening, choose Inset.

3. How does the hinge fix to the door?

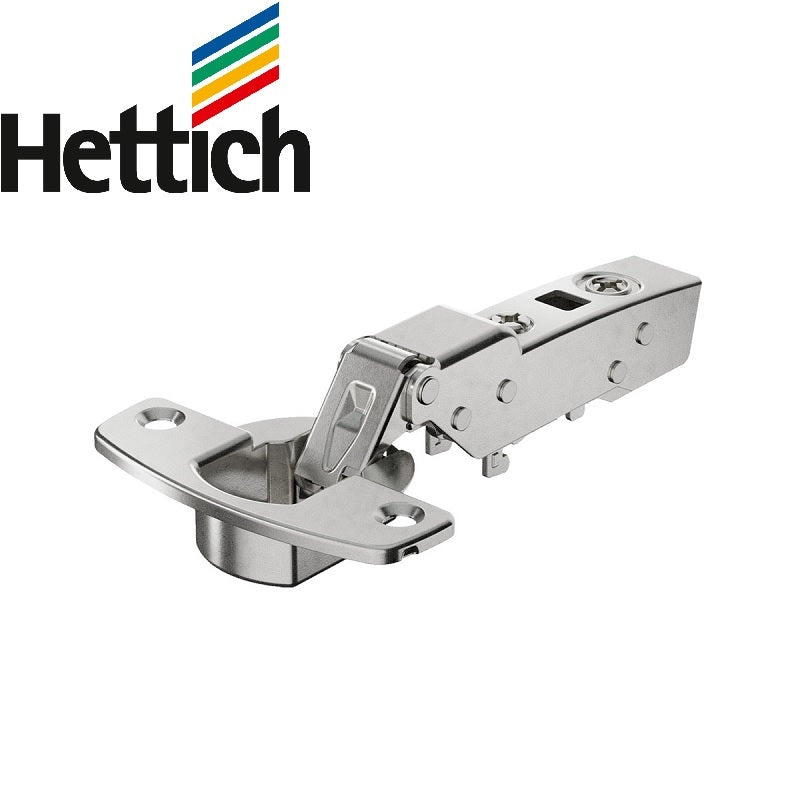

  • Screw In: fixed with screws

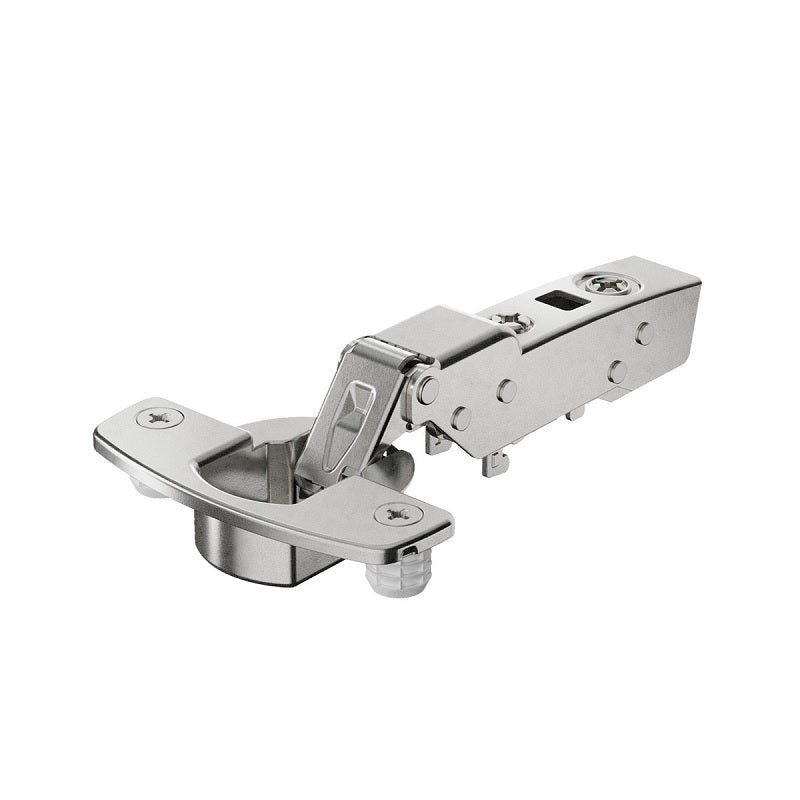

  • Press In: pressed into fixing holes drilled 10 mm wide and 11 mm deep

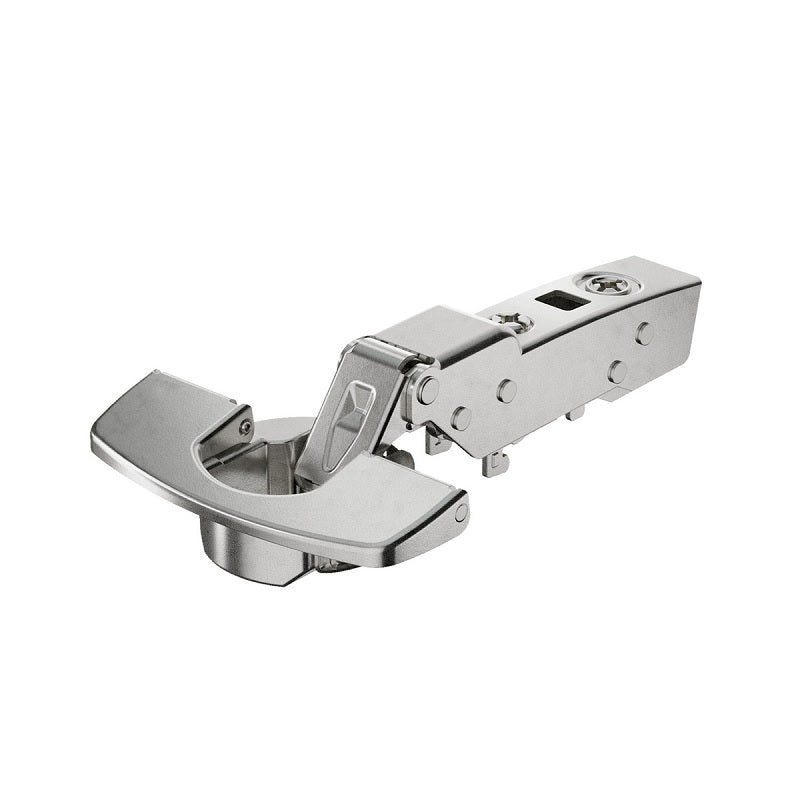

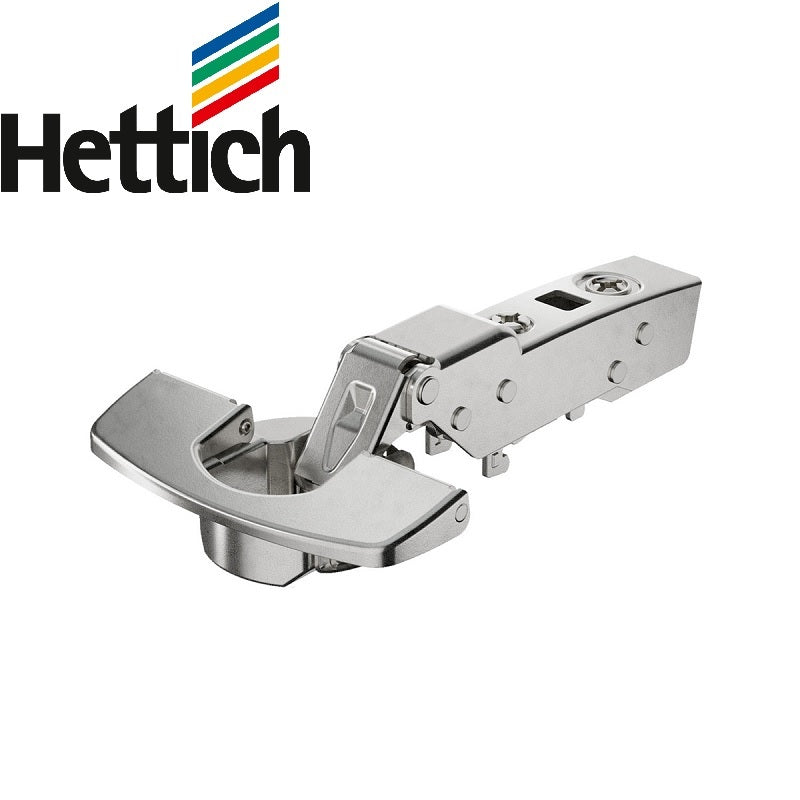

  • Fix Fast: pressed into fixing holes drilled 10 mm wide and 6 mm deep

Choose the one that matches the hinge you are replacing or the holes already drilled in your door.

4. Mounting plates are sold separately
Choose the plate type that matches how it fixes to your cabinet: Screw-In plate, Dowel with Screw plate or Direct Height Adjustment plate.

Specifications

  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110 °
  • For door thickness 15-24 mm
  • Door mounting option half overlay (B 3 mm)
  • TH - drilling pattern 52 x 5.5 mm
  • Cup depth 12.8 mm
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
